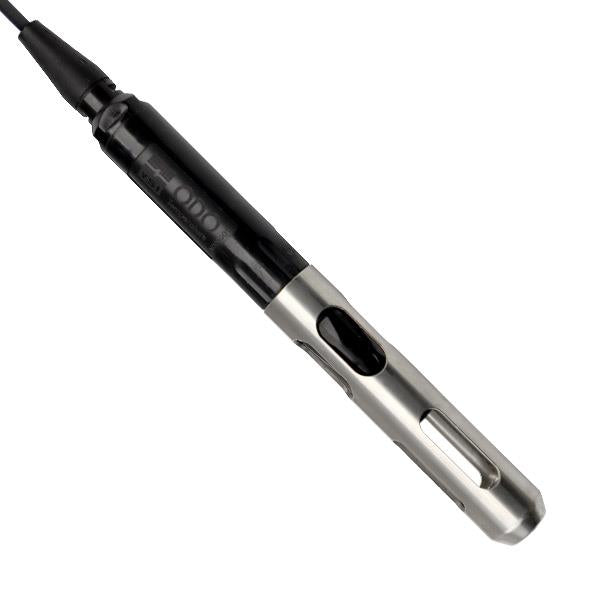

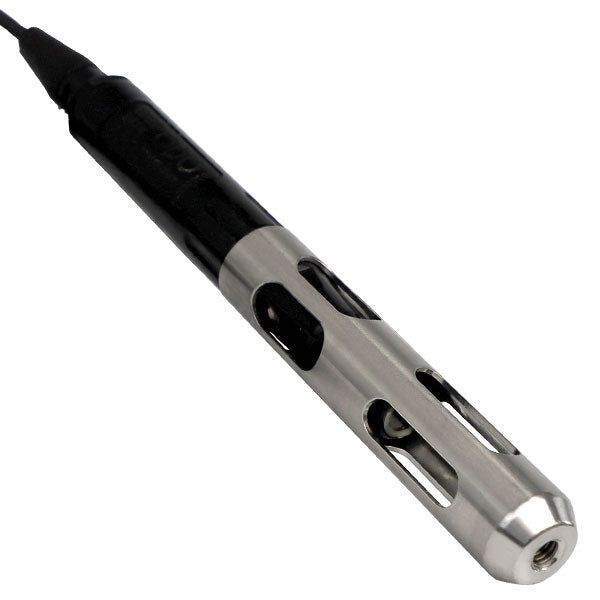

Name: YSI ODO RTU Probe Assembly (DO + Temperature, Modbus/RS-485)
Brand: YSI - Xylem Inc.
SKU: 627350-4
Price: 926.0 USD
Availability: InStock

The YSI ODO RTU is an optical dissolved oxygen and temperature probe assembly that communicates directly with PLCs, data loggers, and SCADA systems via Modbus/RS-485 — no handheld meter or special software required. Simply wire the trimmed and tinned flying lead cable into your existing Modbus network for continuous, low-maintenance DO monitoring at fixed installations such as aquaculture tanks, ponds, wastewater treatment facilities, and process monitoring sites.

Note: Not compatible with ProSolo, ProODO, or any ProDIGITAL handheld meters. For handheld-compatible DO probes, see the YSI ODO/T Probe Assembly.

Optical luminescence DO — no stirring required, no membrane to replace frequently
Modbus/RS-485 (4-wire), 9600 baud default (user programmable)
Power: 10–16V DC, 15 mA max
2-year warranty on cable, probe, and ODO sensor cap; user-replaceable DO cap

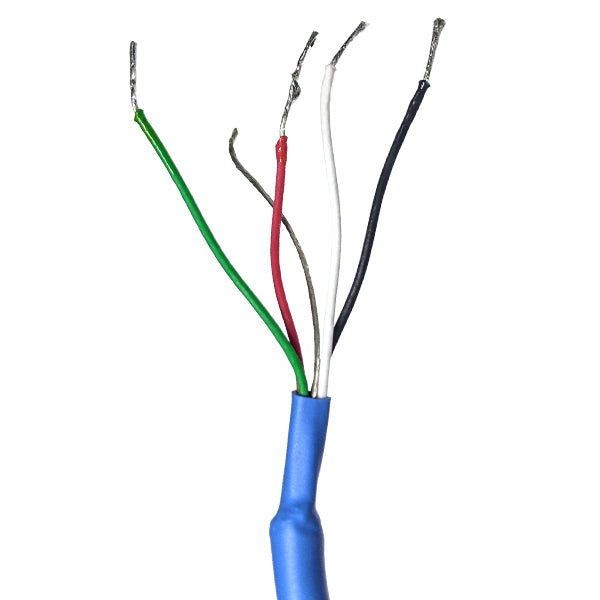

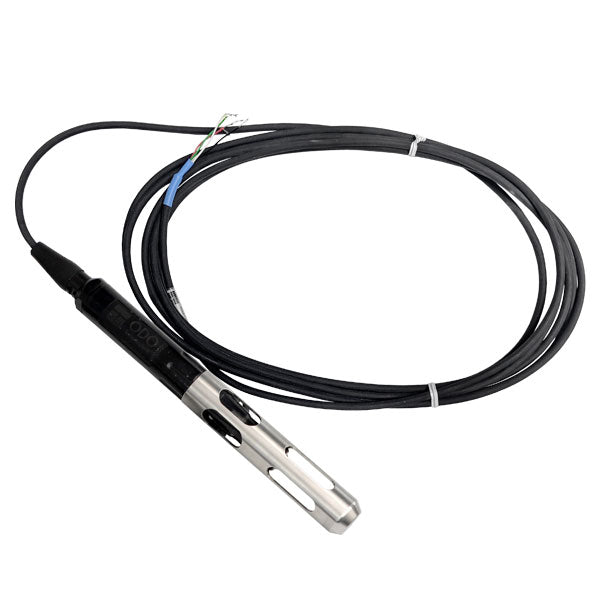

Trimmed and tinned flying lead cable — wires directly into existing Modbus network

SPECS

MANUAL

Optical luminescence DO sensor needs no stirring and no frequent membrane changes
Communicates directly via Modbus/RS-485, no handheld meter needed
9600 baud default, user-programmable
Powered by 10-16V DC, 15 mA max
Trimmed and tinned flying lead cable wires directly into existing Modbus networks
2-year warranty on cable, probe, and sensor cap

Fixed aquaculture tank and pond monitoring
Wastewater treatment process monitoring
SCADA and PLC-integrated DO monitoring
Continuous unattended DO monitoring at fixed installations
Industrial process water monitoring
Data logger integration via Modbus

$926.00
