The longer-reach version of Laval's ultra-portable SC line, pairing the same compact SC-166 camera with a hand-operated winch spooled with 500 feet of Kevlar-reinforced cable. Includes the control console, 7" color monitor, and auxiliary power cable — still light enough to carry to the wellhead by hand.

Application

Water well inspection, vertical shaft surveys, and borehole documentation where a bit more reach than the SC-350 is needed, in boreholes from 2" to 10" in diameter.

Specifications

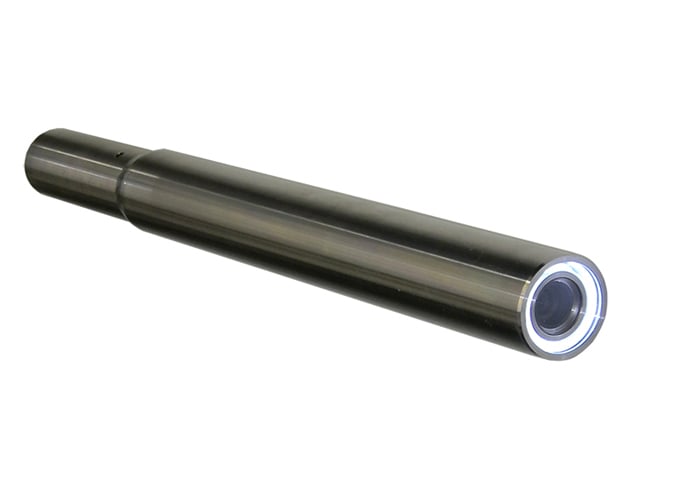

• SC-166 camera: 1.66" O.D. x 16.5", stainless steel, 9 lbs, 750 psi rated
• Resolution: ≥540 TVL (NTSC/PAL)
• Cable: 500 ft. Kevlar-reinforced coaxial
• Winch weight: 22 lbs (dry), 30–33 lbs with cable
• Operating temp: 0°–50°C

Operations Manual | Spec Sheet
