An ultra-portable downhole inspection package built around the compact SC-166 camera, sized to fit boreholes as narrow as 2 inches (up to 10"). A hand-operated winch with a collapsible handle spools 350 feet of Kevlar-reinforced cable, paired with a control console, 7" color monitor, and auxiliary power cable — light enough for a single person to carry to the wellhead.

Application

Well suited to water well inspection, vertical shaft surveys, and general borehole documentation where portability matters more than depth.

Specifications

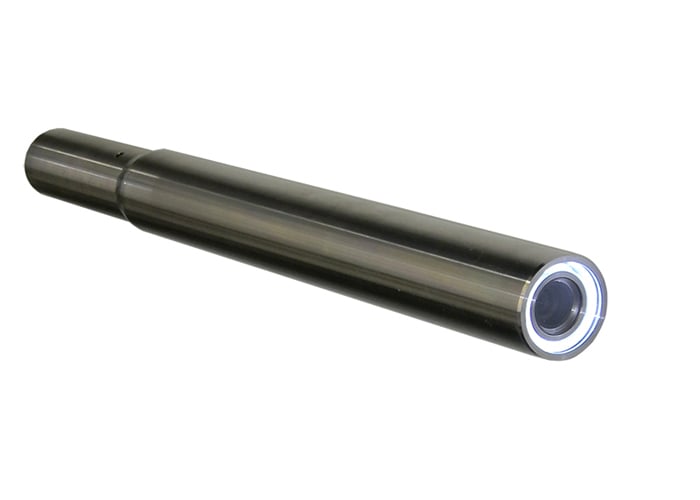

• SC-166 camera: 1.66" O.D. x 16.5", stainless steel, 9 lbs, 750 psi rated
• Resolution: ≥540 TVL (NTSC/PAL)
• Cable: 350 ft. Kevlar-reinforced coaxial
• Winch weight: 22 lbs (dry), 30–33 lbs with cable
• Operating temp: 0°–50°C

Operations Manual | Spec Sheet
