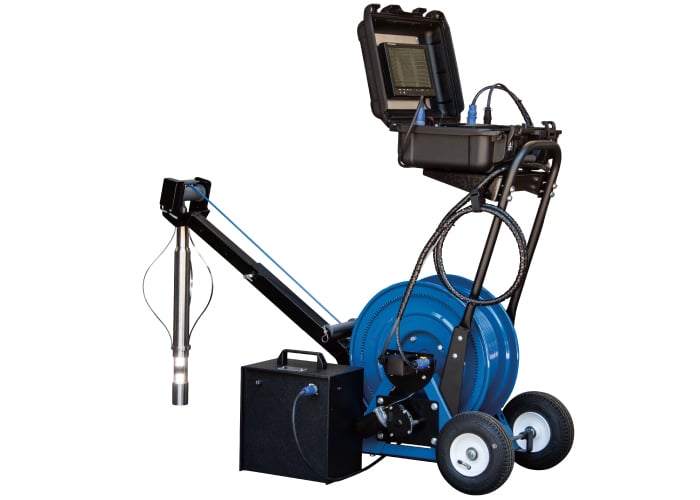

R-Cam 1300 XLT dual-view borehole camera system

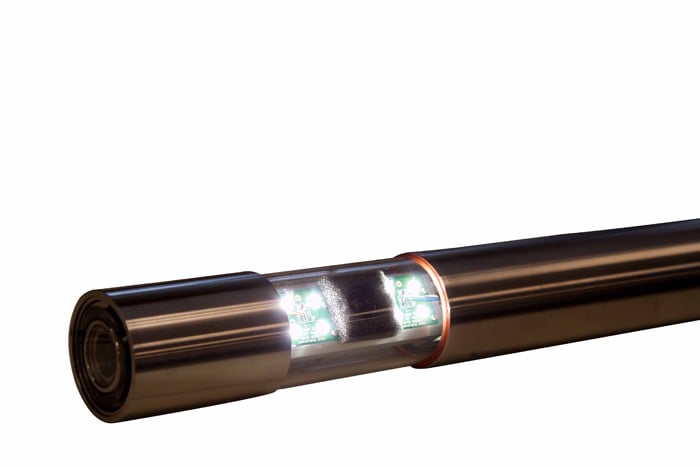

R-Cam 1300 XLT camera close-up

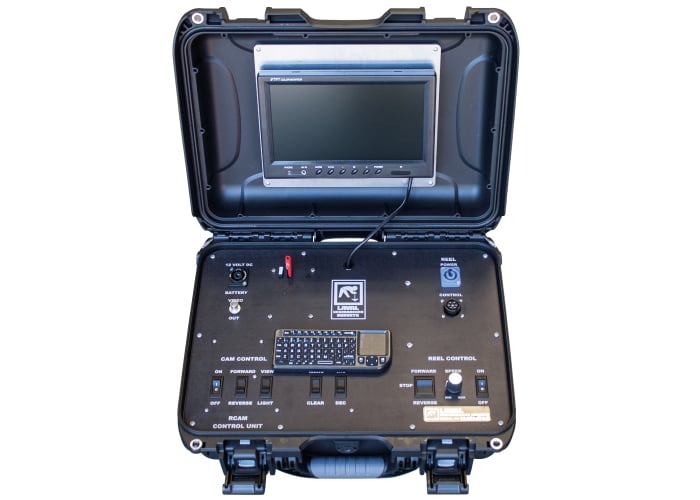

R-Cam XLT control unit

R-Cam 1300 XLT Portable Borehole Camera System

The long-cable sibling of the R-Cam XLT line, extending reach to 1,300 feet while keeping the same dual-camera design — a down-view and a 360-degree side-view lens in one stainless steel housing, with low-light sensors that read images at as little as 1 lux. Five-stage adjustable LED lighting, a built-in microphone for voiceover notes, and a solid-state DVR (16GB internal plus expandable USB, native MP4 output) round out the recording side. The package includes the camera, electric winch with 1,300 ft. of Kevlar-reinforced cable, centralizer, carrying case, control unit with 9" monitor and QWERTY keyboard, 12V battery, and transport cart.

Application

Suited to new construction inspection, lost-tool recovery, and groundwater quality/geological assessment in boreholes up to 16" in diameter and 1,300 feet deep.

Specifications

  • Camera: 2" O.D. x 20", stainless steel, 18 lbs, 750 psi rated
  • Resolution: ≥540 TVL (NTSC/PAL)
  • Cable: 1,300 ft. Kevlar-reinforced coaxial
  • Storage: 16GB internal + 16GB USB
  • Operating temp: 32°–122°F (0°–50°C)

System Manual | Spec Sheet


Regular price$17,670.00
/
