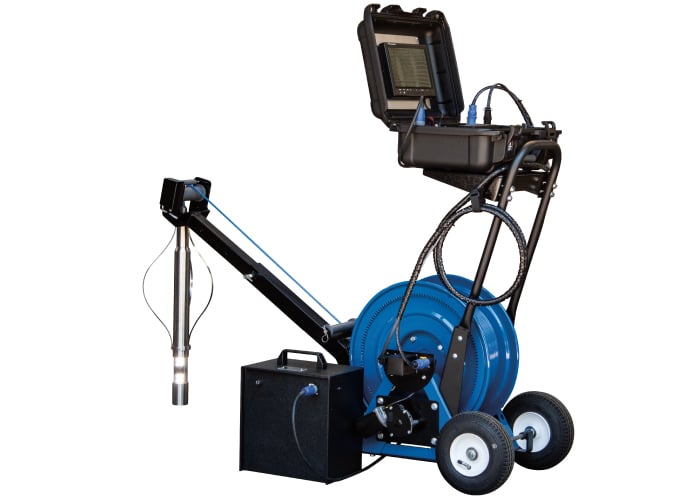

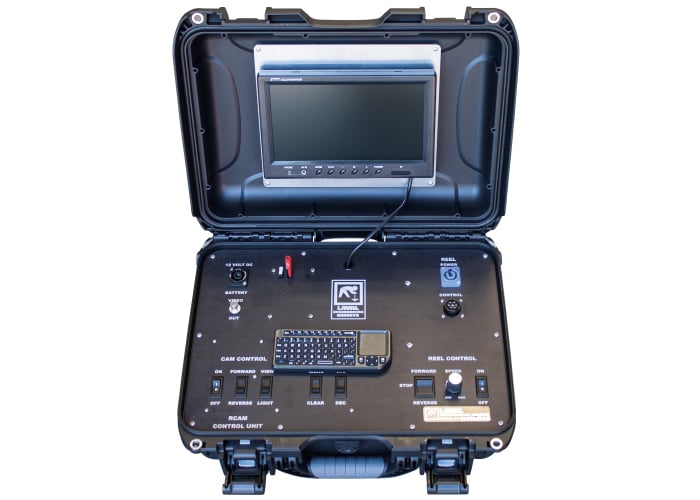

A complete portable dual-view inspection package built around the R-Cam XLT camera, which houses two low-light cameras — one facing down, one facing out at a wide angle — in a single stainless steel housing. Adjustable LED lighting (five brightness stages) and a solid-state DVR that records straight to MP4 make it easy to capture and share clean well footage without extra file conversion. The package bundles the camera, an electric winch spooled with 1,000 feet of Kevlar-reinforced cable, a centralizer, a rugged carrying case, the control unit with 9" monitor and QWERTY keyboard, a 12V battery pack, and a portable transport cart.

Application

Built for water well and borehole professionals who need to document new construction, track down lost tools, or evaluate groundwater quality and well condition at depths up to 1,000 feet.

Specifications

• Camera: 2" O.D. x 20", stainless steel, 18 lbs, 500 psi rated
• Resolution: ≥540 TVL (NTSC/PAL)
• Cable: 1,000 ft. Kevlar-reinforced coaxial
• Monitor: 9" LCD color with embedded DVR
• Operating temp: 32°–122°F (0°–50°C)

System Manual | Spec Sheet
