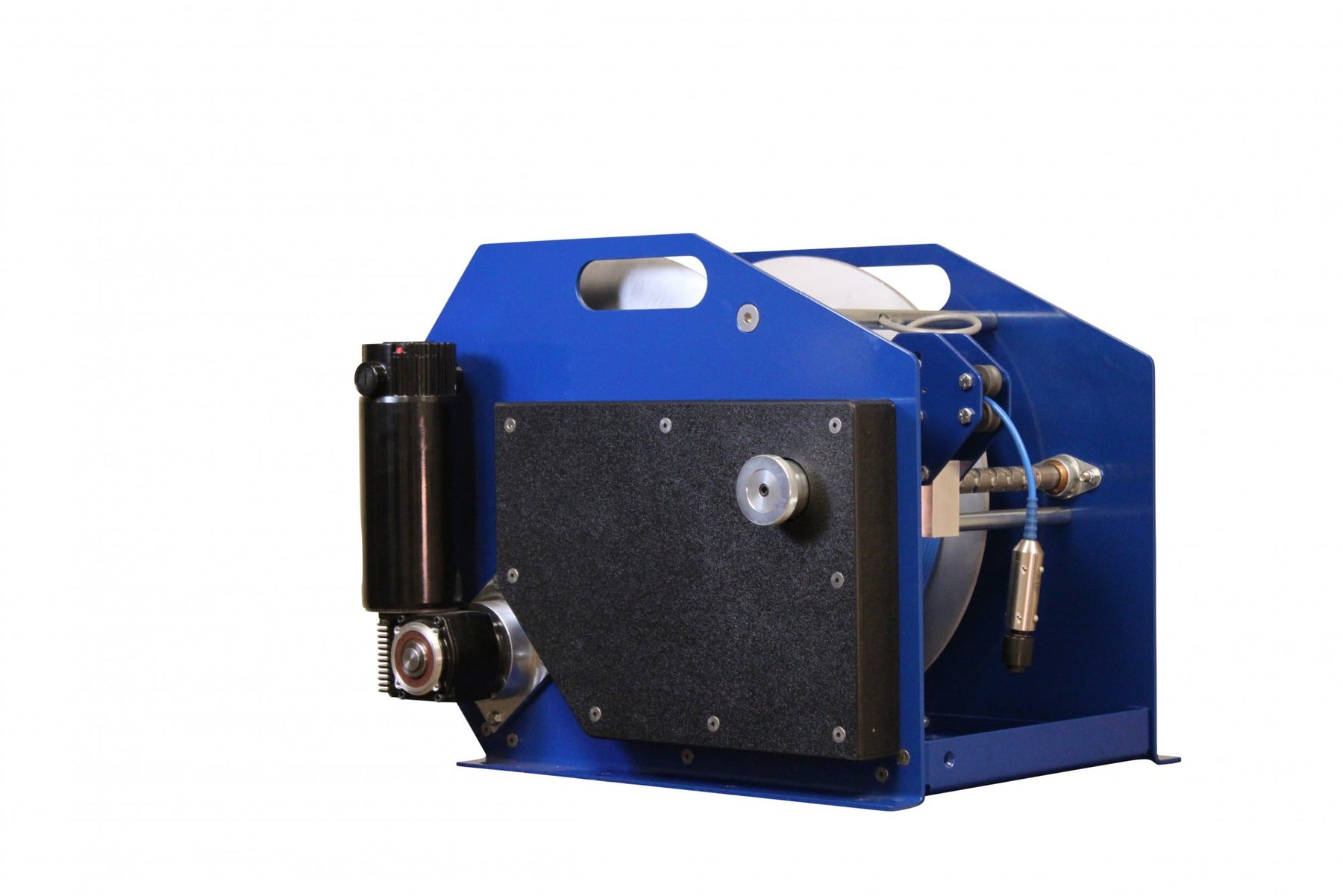

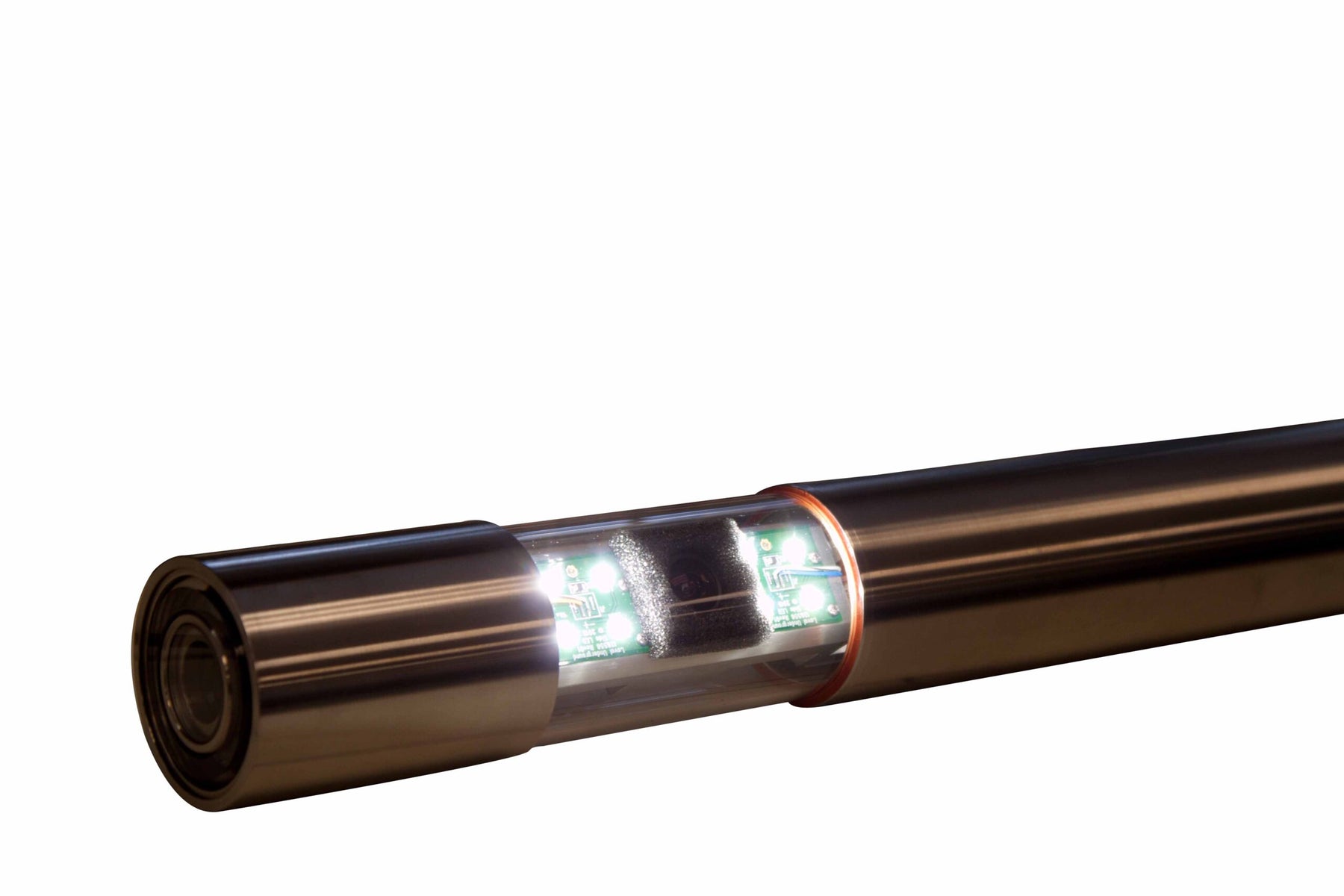

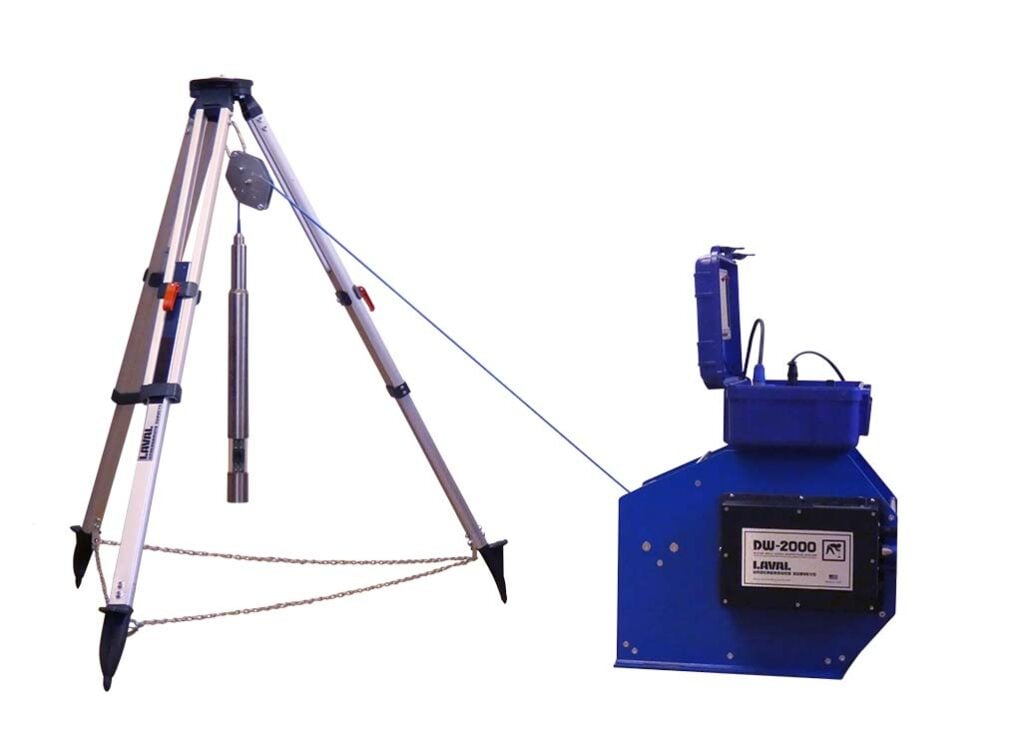

Laval's deepest portable system, reaching 2,000 feet on a 115V electric winch with a level-wind mechanism, 1/4 HP gear motor, and detachable quick-connect cable head rated to 5,000 psi. Pairs with the dual-view R-Cam XLT camera (down-view and side-view) and includes the control unit, connecting cables, and tripod.

Application

New construction inspection, lost-tool recovery, and groundwater quality/geological assessment in deep wells, or as a lower-cost alternative to a dedicated vehicle-mounted rig.

Specifications

• Motor: 90 VDC, 1/4 HP, 360 in-lbs torque, 20 rpm
• Power: 115/230 VAC
• Cable: 2,000 ft.
• Weight: 172 lbs with cable, 120 lbs without
• Dimensions: 17.5"H x 20.33"W x 22.25"L

System Manual | Spec Sheet
