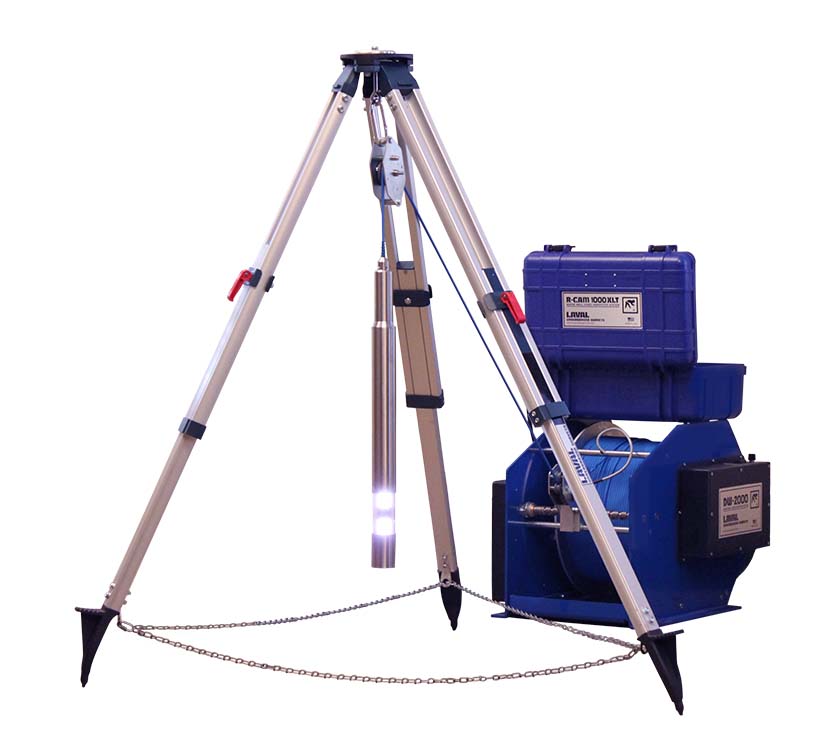

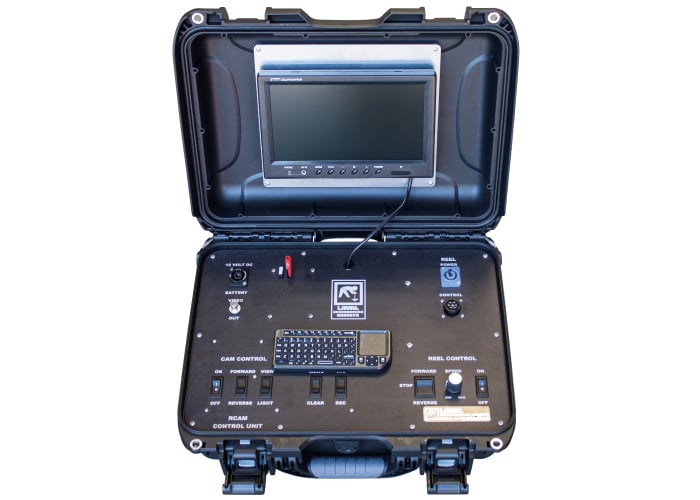

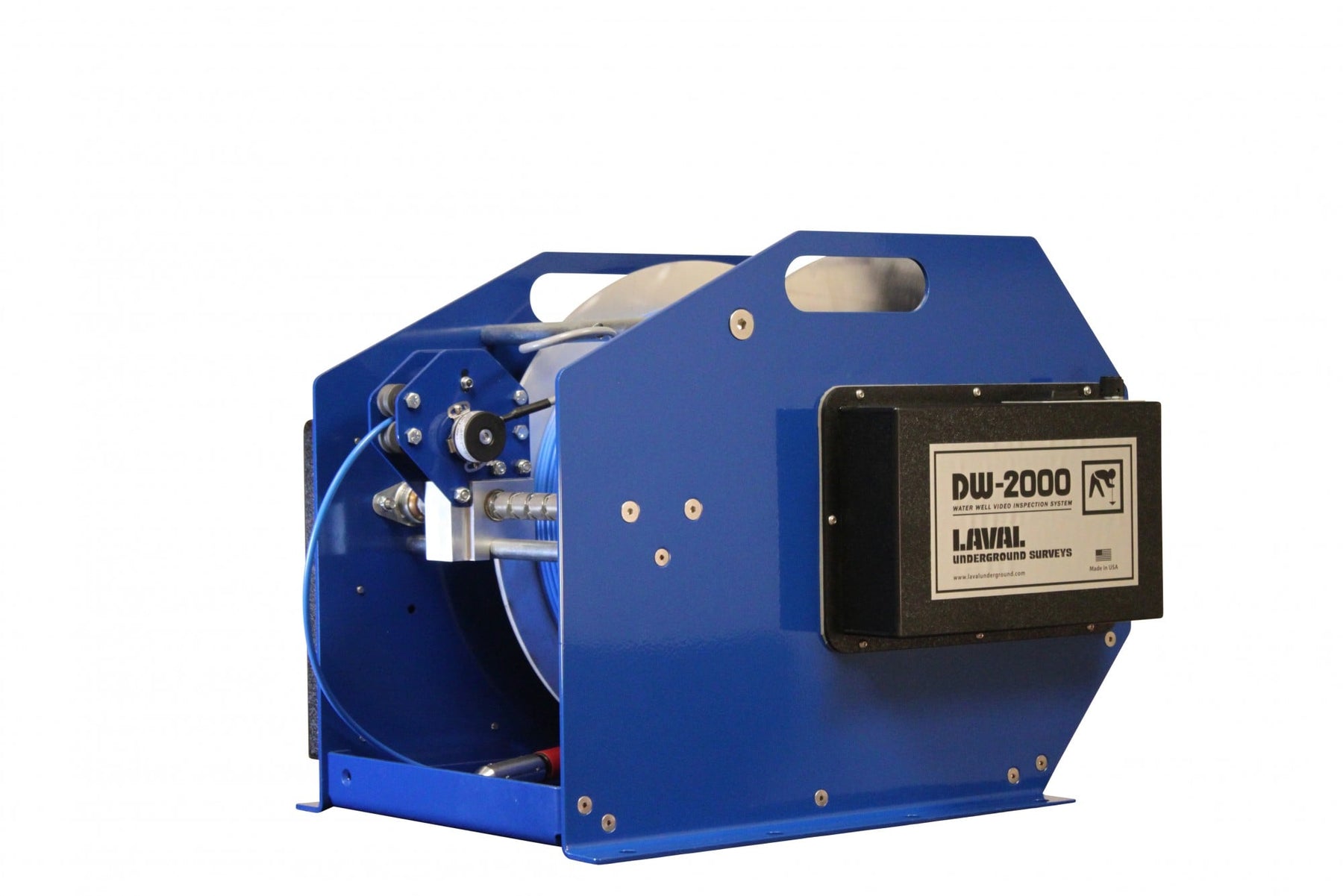

A vehicle/skid-friendly downhole system built around a 115V electric winch carrying 1,500 feet of cable with a level-wind mechanism for even spooling, a 1/4 HP gear motor, and a detachable quick-connect cable head. Runs Laval's dual-view camera (down-view plus side-view), with the control unit, connecting cables, and a tripod included.

Application

Deep well rehabilitation, borehole inspection, and groundwater assessment at depths up to 1,500 feet — an economical alternative to a dedicated vehicle-mounted rig.

Specifications

• Motor: 90 VDC, 1/4 HP, 360 in-lbs torque, 20 rpm
• Power: 115/230 VAC
• Cable: 1,500 ft.
• Weight: 172 lbs with cable, 120 lbs without
• Dimensions: 17.5"H x 20.33"W x 22.25"L
