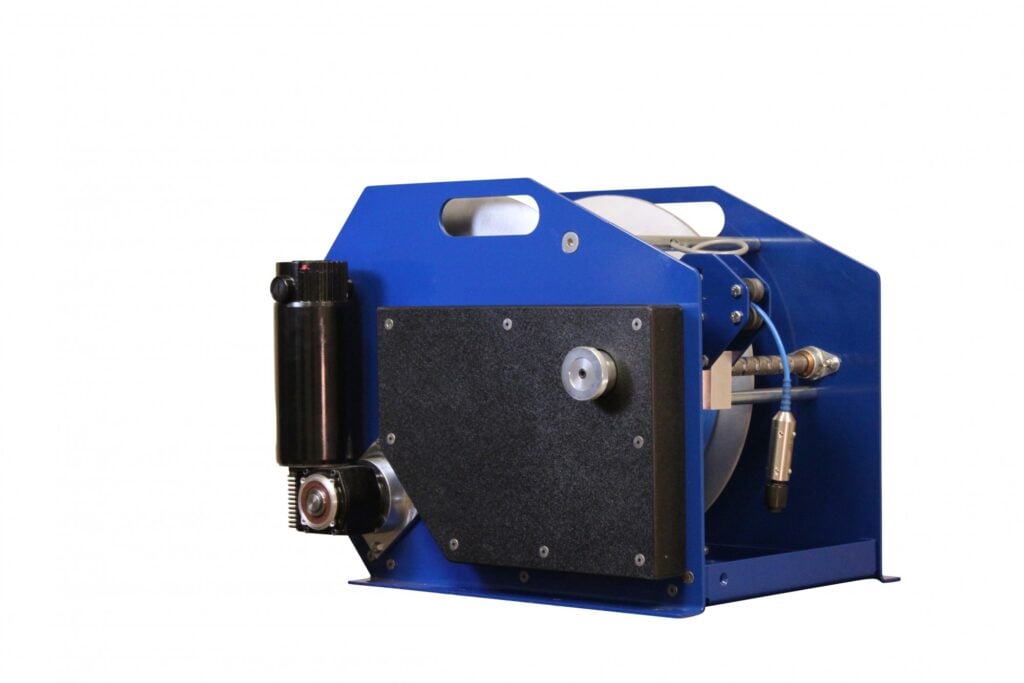

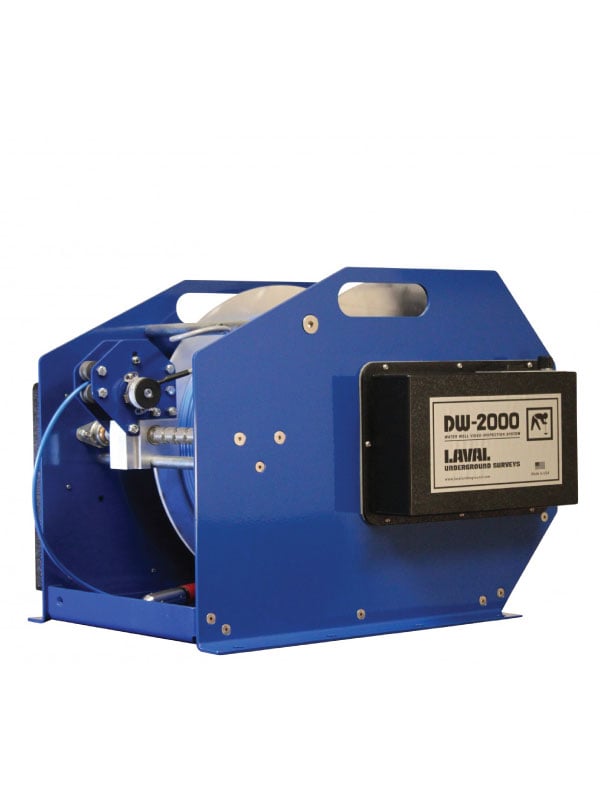

A vehicle/skid-mountable electric winch with a level-wind mechanism, spooled with 1,500 feet of Kevlar-reinforced cable and a cable head already attached. Powered by a 90VDC, 1/4 HP gear motor, with a detachable quick-connect cable head rated to 5,000 psi and an optional remote controller for draw-works operation.

Application

Replacement or spare winch for DW-1500 deep well camera systems, used in well rehabilitation and inspection work.

Specifications

• Cable: 1,500 ft. Kevlar-reinforced
• Motor: 90 VDC, 1/4 HP, 360 in-lbs torque, 20 rpm
• Power: 115/230 VAC
• Weight: 172 lbs with cable, 120 lbs without
