Name: RKI SD-1 Fixed Gas Detector
Brand: RKI Instruments
SKU: SD-1EC-CO
Price: 1020.0 USD
Availability: InStock

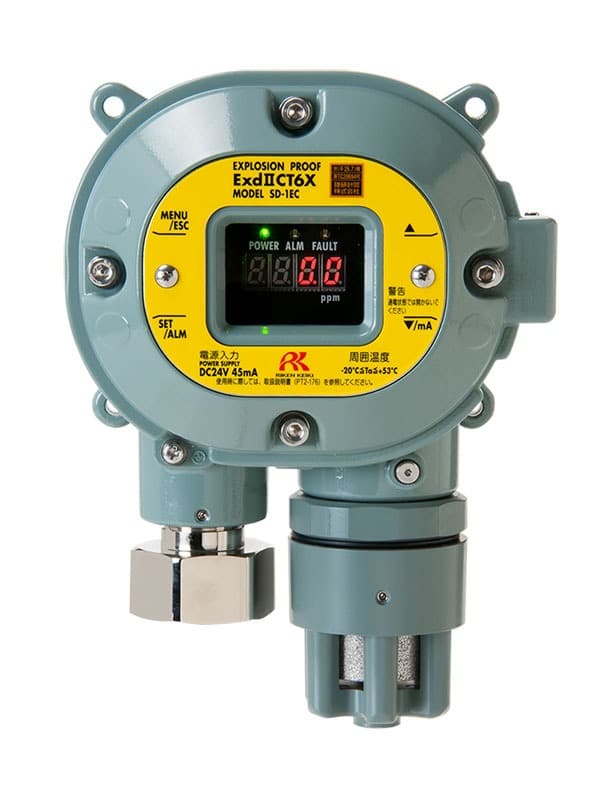

The RKI SD-1 is a compact, explosion-proof fixed gas detector head available across five sensor platforms — electrochemical (EC) for toxic gases like CO and H2S, catalytic combustible sensors (GH and GP) covering dozens of solvents and flammable gases, galvanic oxygen (OX), and infrared (RI/DRI) for combustibles resistant to catalytic poisoning. All output 4-20mA, with HART communication available on select sensors.

ATEX/IECEx Ex d IIC T5 rated with IP-65/67 housing, the SD-1 is built for LNG terminals, petrochemical plants, power stations, utilities, and steel works. RKI's SD-1GH platform alone covers 25+ specific solvent and VOC gases — the configurations listed here are the most commonly ordered across each sensor type; other gas-specific calibrations are available by quote.

Five sensor platforms: electrochemical, catalytic (GH/GP), galvanic O2, and IR
ATEX/IECEx Ex d IIC T5 rated, IP-65/67 housing
4-20mA output, HART communication available on select sensors

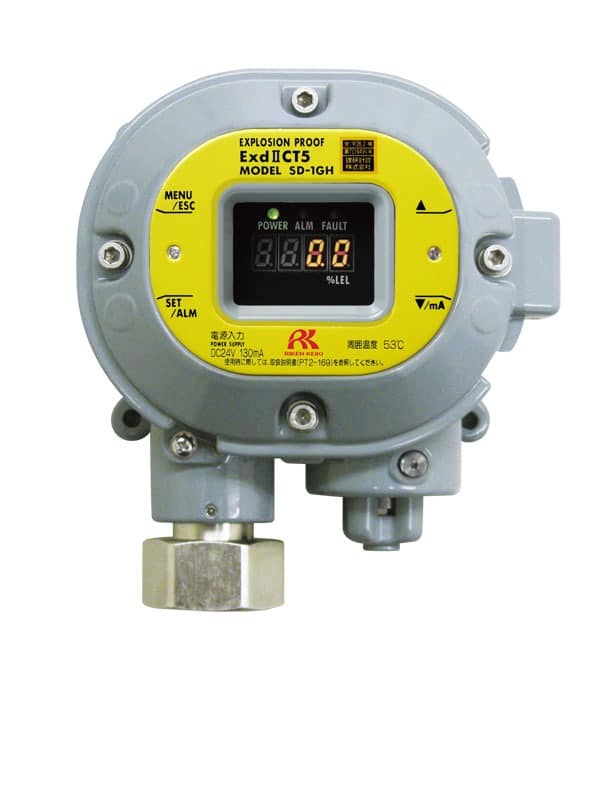

SD-1GH platform covers 25+ specific solvent and VOC gases
SIL2 available on IR/EC/OX sensor variants
Compact explosion-proof design for space-constrained installs

LNG terminal gas monitoring
Petrochemical and refinery fixed-point gas detection
Power station gas monitoring
Utility and steel works gas detection
Solvent and VOC monitoring in chemical processing
Confined space and hazardous area point monitoring

$1,020.00

Quantity

[{"id":48206489551038,"title":"SD-1EC: Carbon Monoxide (0-75 ppm)","option1":"SD-1EC: Carbon Monoxide (0-75 ppm)","option2":null,"option3":null,"sku":"SD-1EC-CO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1EC: Carbon Monoxide (0-75 ppm)","public_title":"SD-1EC: Carbon Monoxide (0-75 ppm)","options":["SD-1EC: Carbon Monoxide (0-75 ppm)"],"price":102000,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489583806,"title":"SD-1EC: Hydrogen Sulfide (0-30 ppm)","option1":"SD-1EC: Hydrogen Sulfide (0-30 ppm)","option2":null,"option3":null,"sku":"SD-1EC-H2S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1EC: Hydrogen Sulfide (0-30 ppm)","public_title":"SD-1EC: Hydrogen Sulfide (0-30 ppm)","options":["SD-1EC: Hydrogen Sulfide (0-30 ppm)"],"price":102000,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489616574,"title":"SD-1GH: Methane (0-2,000 ppm)","option1":"SD-1GH: Methane (0-2,000 ppm)","option2":null,"option3":null,"sku":"SD-1GH-CH4-2K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1GH: Methane (0-2,000 ppm)","public_title":"SD-1GH: Methane (0-2,000 ppm)","options":["SD-1GH: Methane (0-2,000 ppm)"],"price":78375,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489649342,"title":"SD-1GH: Benzene (0-500 ppm)","option1":"SD-1GH: Benzene (0-500 ppm)","option2":null,"option3":null,"sku":"SD-1GH-BNZ-500","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1GH: Benzene (0-500 ppm)","public_title":"SD-1GH: Benzene (0-500 ppm)","options":["SD-1GH: Benzene (0-500 ppm)"],"price":78375,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489682110,"title":"SD-1GH: Ammonia (0-500 ppm)","option1":"SD-1GH: Ammonia (0-500 ppm)","option2":null,"option3":null,"sku":"SD-1GH-NH3-500","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1GH: Ammonia (0-500 ppm)","public_title":"SD-1GH: Ammonia (0-500 ppm)","options":["SD-1GH: Ammonia (0-500 ppm)"],"price":78375,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489714878,"title":"SD-1GH: Ethanol (0-2,000 ppm)","option1":"SD-1GH: Ethanol (0-2,000 ppm)","option2":null,"option3":null,"sku":"SD-1GH-ETH-2K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1GH: Ethanol (0-2,000 ppm)","public_title":"SD-1GH: Ethanol (0-2,000 ppm)","options":["SD-1GH: Ethanol (0-2,000 ppm)"],"price":78375,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489747646,"title":"SD-1GH: Xylene (0-1,000 ppm)","option1":"SD-1GH: Xylene (0-1,000 ppm)","option2":null,"option3":null,"sku":"SD-1GH-XYL-1K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1GH: Xylene (0-1,000 ppm)","public_title":"SD-1GH: Xylene (0-1,000 ppm)","options":["SD-1GH: Xylene (0-1,000 ppm)"],"price":78375,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489780414,"title":"SD-1GP: Methane (0-100% LEL)","option1":"SD-1GP: Methane (0-100% LEL)","option2":null,"option3":null,"sku":"SD-1GP-CH4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1GP: Methane (0-100% LEL)","public_title":"SD-1GP: Methane (0-100% LEL)","options":["SD-1GP: Methane (0-100% LEL)"],"price":66750,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489813182,"title":"SD-1GP: Hydrogen (0-100% LEL)","option1":"SD-1GP: Hydrogen (0-100% LEL)","option2":null,"option3":null,"sku":"SD-1GP-H2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1GP: Hydrogen (0-100% LEL)","public_title":"SD-1GP: Hydrogen (0-100% LEL)","options":["SD-1GP: Hydrogen (0-100% LEL)"],"price":66750,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489845950,"title":"SD-1GP: LPG (0-100% LEL)","option1":"SD-1GP: LPG (0-100% LEL)","option2":null,"option3":null,"sku":"SD-1GP-LPG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1GP: LPG (0-100% LEL)","public_title":"SD-1GP: LPG (0-100% LEL)","options":["SD-1GP: LPG (0-100% LEL)"],"price":66750,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489878718,"title":"SD-1OX: Oxygen (0-25% vol)","option1":"SD-1OX: Oxygen (0-25% vol)","option2":null,"option3":null,"sku":"SD-1OX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1OX: Oxygen (0-25% vol)","public_title":"SD-1OX: Oxygen (0-25% vol)","options":["SD-1OX: Oxygen (0-25% vol)"],"price":94125,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489911486,"title":"SD-1RI: Isobutane (0-100% LEL, IR)","option1":"SD-1RI: Isobutane (0-100% LEL, IR)","option2":null,"option3":null,"sku":"SD-1RI-IC4H10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1RI: Isobutane (0-100% LEL, IR)","public_title":"SD-1RI: Isobutane (0-100% LEL, IR)","options":["SD-1RI: Isobutane (0-100% LEL, IR)"],"price":110250,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48206489944254,"title":"SD-1DRI: Methane (0-100% LEL, IR)","option1":"SD-1DRI: Methane (0-100% LEL, IR)","option2":null,"option3":null,"sku":"SD-1DRI-CH4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RKI SD-1 Fixed Gas Detector - SD-1DRI: Methane (0-100% LEL, IR)","public_title":"SD-1DRI: Methane (0-100% LEL, IR)","options":["SD-1DRI: Methane (0-100% LEL, IR)"],"price":129750,"weight":2000,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]
