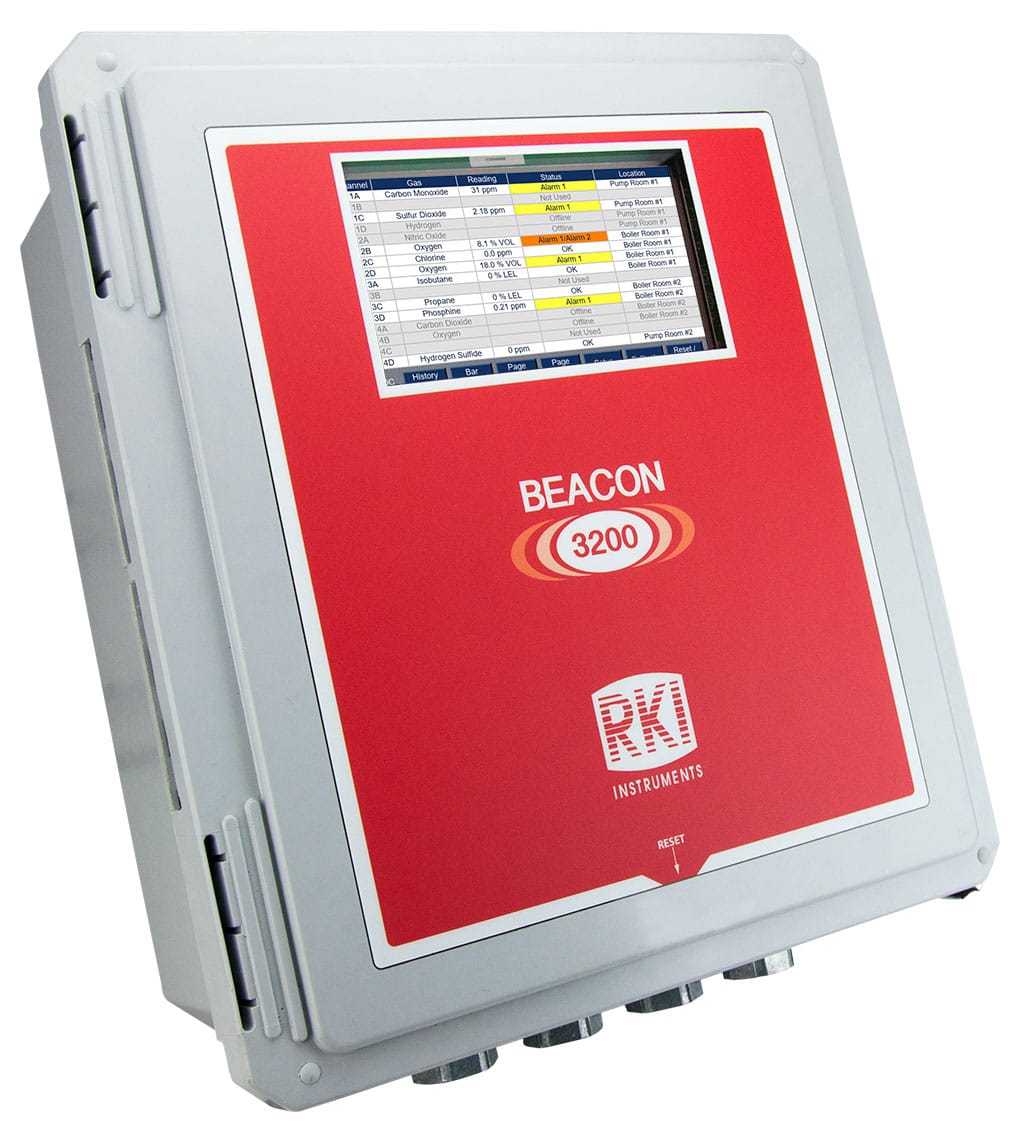

Name: RKI Beacon 3200 Gas Detection Controller
Brand: RKI Instruments
SKU: 72-2132
Price: 4098.75 USD
Availability: InStock

The RKI Beacon 3200 is a modular controller that scales up to 32 channels across 8 sensor/relay module slots (4 sensors and 8 relays per card), with a 7-inch color touchscreen displaying every channel at once. Four base Form-C relays cover fail/alarm conditions, expandable through additional relay cards, and outputs include per-channel 4-20mA, RS-485 Modbus, Modbus TCP/IP over Ethernet, and SD-card datalogging across all 32 channels.

Housed in a NEMA 4X fiberglass/polyester enclosure with a Lexan window, the Beacon 3200 runs on 115/220VAC or 24VDC with optional battery backup and operates from -40°F to 122°F. It's built for facilities consolidating a large number of gas detection points into one touchscreen-managed system rather than a rack of standalone controllers.

Modular design scales up to 32 channels across 8 sensor/relay cards
7-inch color touchscreen displays every channel at once
4 base Form-C relays, expandable via additional relay cards
Per-channel 4-20mA, RS-485 Modbus, and Modbus TCP/IP over Ethernet
SD-card datalogging across all 32 channels
NEMA 4X fiberglass/polyester enclosure with Lexan window

Large petrochemical and refinery gas monitoring networks
Water and wastewater treatment plant gas monitoring
Utility and parking garage multi-point gas detection
Pulp and paper mill gas detection systems
Steel and heavy manufacturing gas monitoring
Consolidating large wired detector networks into one controller

$4,098.75

Quantity
