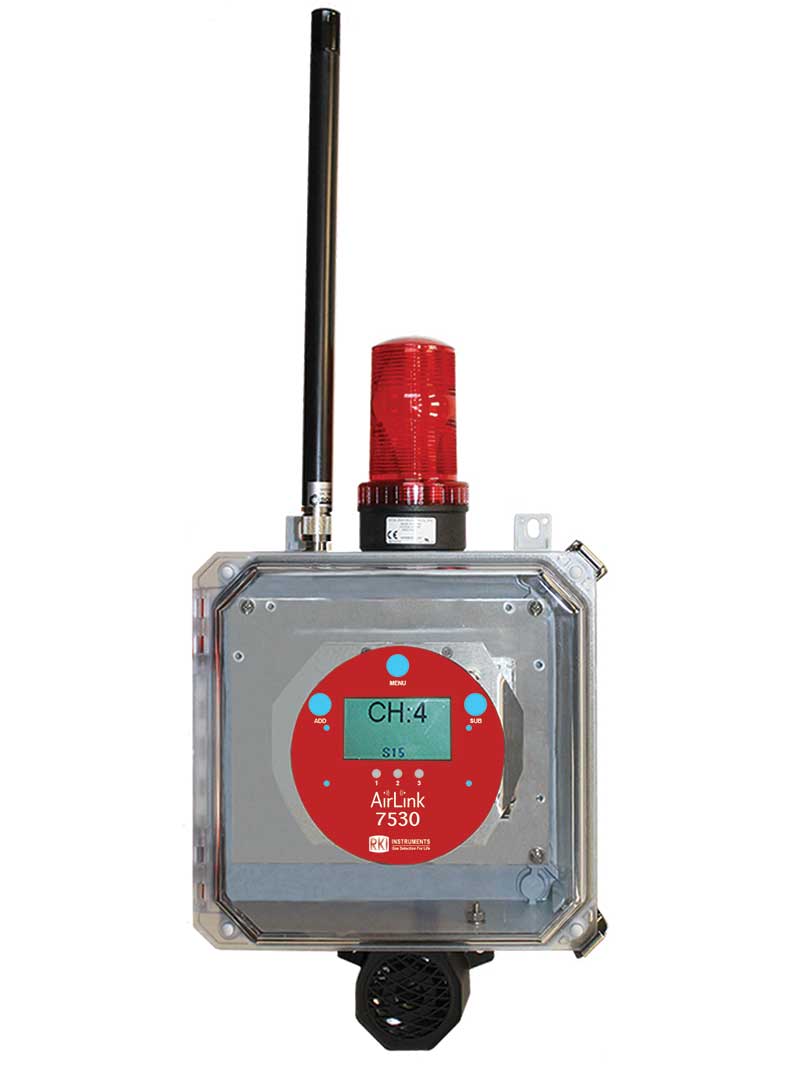

Name: RKI AirLink 7530 Wireless Relay Module
Brand: RKI Instruments
SKU: 66-7530-2N-A
Price: 2077.5 USD
Availability: InStock

The RKI AirLink 7530 receives up to 32 wireless sensor inputs and converts alarm conditions into three dry-contact relay outputs (4A fuses, 3 configurable setpoints per channel, latching or non-latching), giving a wireless gas detection network local horn/strobe or shutdown control without running back to a central controller. A 128x64 LCD shows live channel status directly on the unit.

Available in a standard aluminum enclosure or an explosion-proof (XP) version certified for Class I Groups B, C, D and Class II Groups E, F, G locations, the AirLink 7530 runs on 12-35VDC or an optional 120VAC supply and operates from -40°F to 158°F. Choose 900MHz or 2.4GHz radio to match the wireless network it's joining.

Receives up to 32 wireless sensor inputs
3 dry-contact relays, 4A fuses, 3 configurable setpoints per channel
128x64 LCD shows live channel status
Standard or explosion-proof (XP) enclosure options
12-35VDC or optional 120VAC power
Choice of 900MHz or 2.4GHz radio

Wireless network local alarm/relay control
Petrochemical and refinery wireless gas monitoring
Water and wastewater treatment plant safety
Pulp and paper mill gas detection
Hazardous-area local horn/strobe control
Chemical plant wireless network integration

$2,077.50

Quantity
