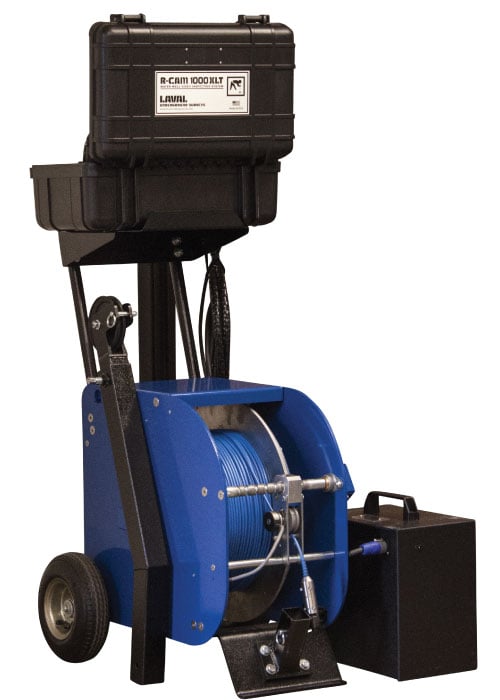

The 1,300-foot-cable version of Laval's R-Cam TLE level-wind system. The winch's built-in level wind spools cable evenly without operator attention, and a removable boom arm and winch handle simplify transport and storage. Includes the dual-view R-Cam camera, centralizer, carrying case, control unit with 9" monitor and embedded DVR, QWERTY keyboard, 12V battery, and transport cart.

Application

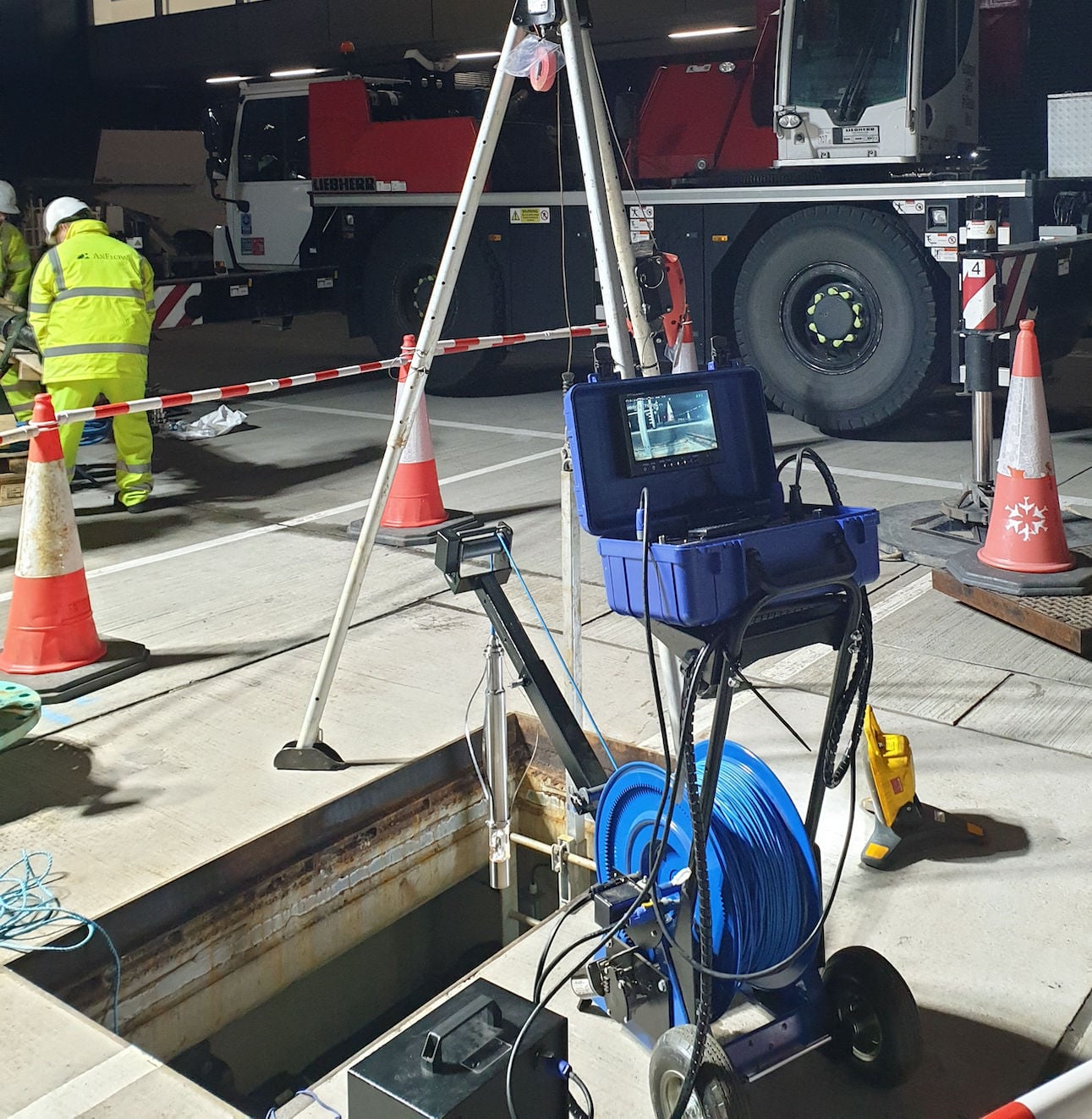

New construction inspection, lost-tool recovery, and groundwater quality/geological assessment at extended depth with reduced cable-management effort.

Specifications

• Motor: 12VDC gear motor, 9 rpm, 53 in-lbs torque
• Dimensions: 40"H x 18"W x 47"L, 130 lbs
• Cable: 1,300 ft. Kevlar-reinforced, 5,000 psi quick-connect head

System Manual | Spec Sheet
