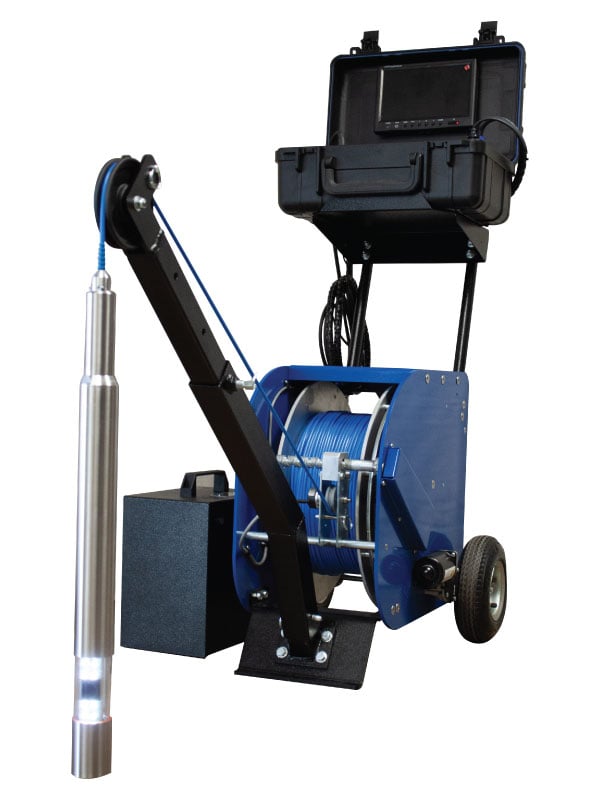

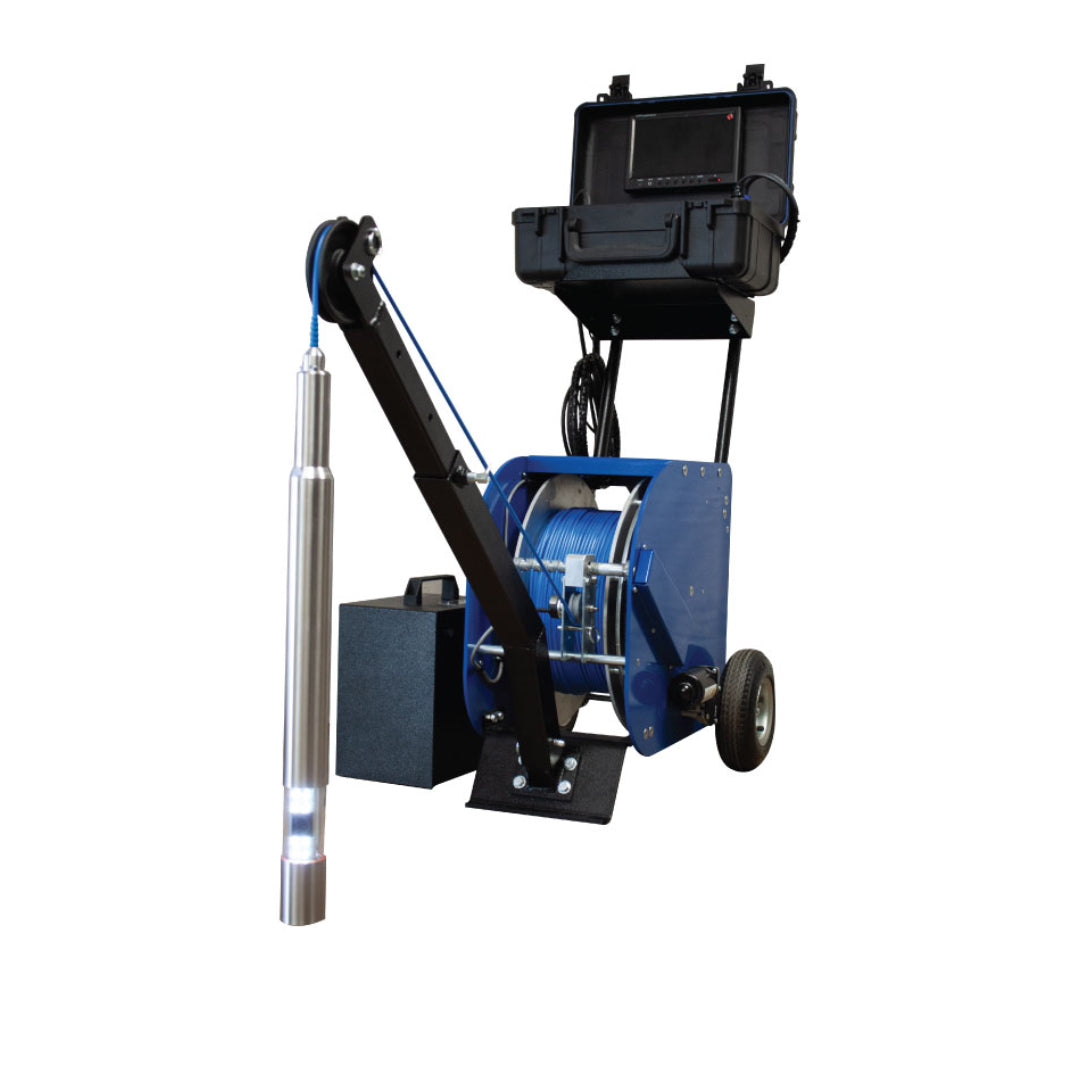

The level-wind winch used in the R-Cam TLE system, carrying 1,000 feet of Kevlar-reinforced coaxial cable. The gear-driven level wind spools cable evenly across the drum automatically, and a detachable quick-connect cable head (5,000 psi rated) plus a removable boom arm and winch handle simplify field use and storage.

Application

Replacement or spare winch for R-Cam 1000 TLE systems, reducing the cable-management attention needed during borehole surveys.

Specifications

• Cable: 1,000 ft. Kevlar-reinforced coaxial
• Motor: 12VDC gear motor, 9 rpm, 53 in-lbs torque
• Dimensions: 40"H x 18"W x 47"L, 130 lbs

Spec Sheet
