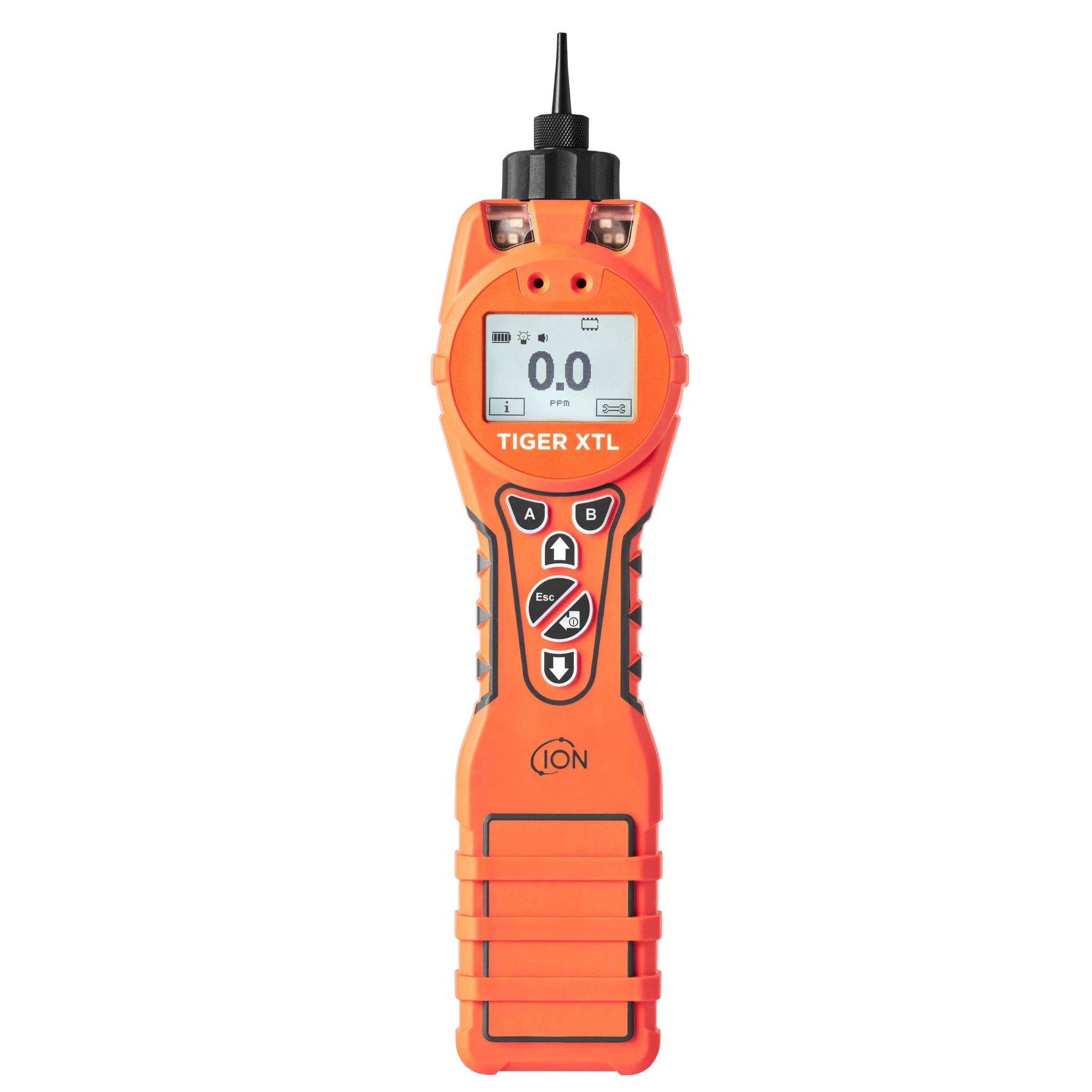

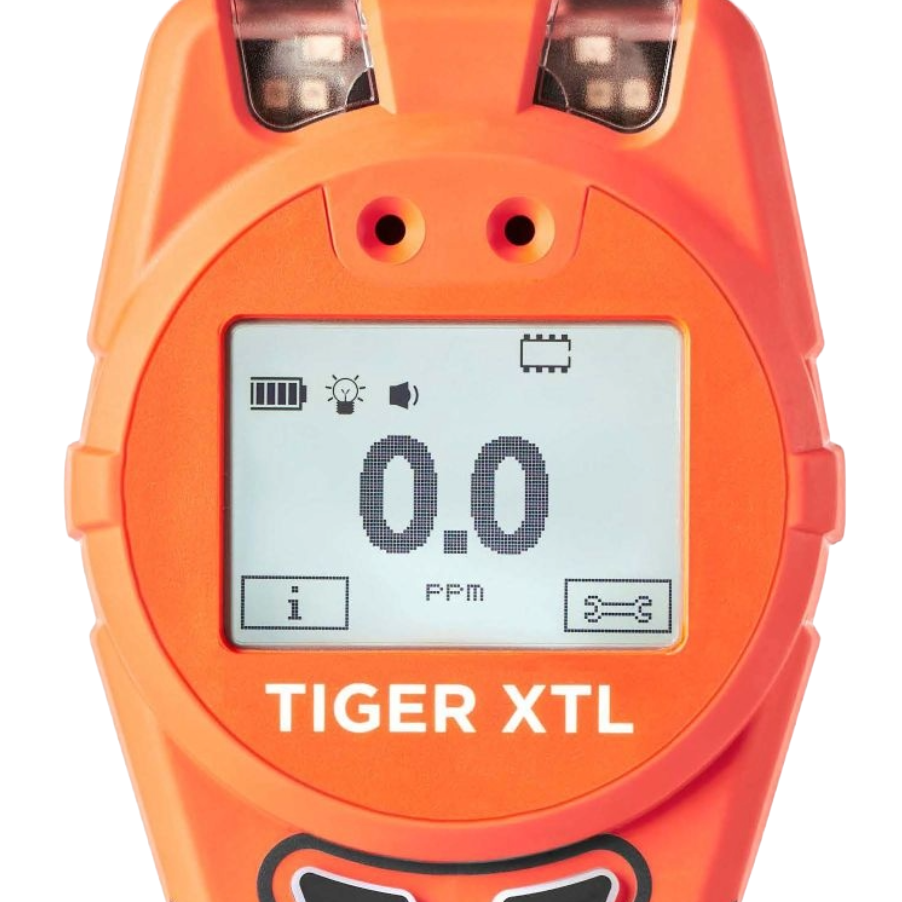

The Ion Science Tiger XTL is a cost-effective handheld photoionization detector (PID) for routine VOC screening, built on the same patented Fence Electrode Technology and anti-contamination materials as the flagship Tiger XT. It measures VOCs from 1 ppm to 5,000 ppm with a two-second response time and responds to over 750 detectable compounds. A thermoplastic elastomer outer molding makes the intrinsically safe XTL easy to operate one-handed, even in heavy gloves, and the Li-ion pack delivers up to 24 hours of runtime.

APPLICATIONS

Soil Headspace Screening: Jar headspace and borehole logging on Phase II site investigations.

Hazardous Waste Operations: Drum and container screening, waste characterization, HAZWOPER site work.

Leak Detection: Fugitive VOC emission surveys on tanks, valves, flanges, and process piping.

Industrial Hygiene: General area VOC surveys and walkthrough assessments.

Confined Space Entry: Pre-entry organic vapor screening.

WHY THE TIGER XTL

• 1 to 5,000 ppm range covering over 750 detectable compounds
• Two-second response — faster survey coverage per shift
• Humidity- and contamination-resistant Fence Electrode Technology
• Intrinsically safe, Class 1 Division 1 (Groups A, B, C & D, T4)
• Up to 24 hours Li-ion runtime, 8-hour charge
• Lower entry cost than the Tiger XT where ppb sensitivity is not required

CONSUMABLES & REPLACEMENT PARTS

10.6eV lamps, MiniPID 2 sensors, electrode stacks, PTFE filters, probes, battery packs, chargers, and the Tiger XTL accessory kit are stocked. Browse Ion Science Parts and Accessories, shop the Tiger XT / XTL Spares & Accessories listing, or see the full instrument range in Ion Science.

Documents: Tiger XTL Instrument Manual
