Name: Geoprobe Direct Push Liners
Brand: Geoprobe
SKU: 71452051
Price: 104.0 USD
Availability: InStock

Geoprobe's full line of clear PVC direct-push soil sampling liners, covering the MacroCore, DT22, DT325, and DT45 sampler systems. Extruded in the USA from rigid, clear PVC, each liner captures a continuous, minimally disturbed soil core as its matching sampler is driven into the ground and retrieved — letting field staff see stratification immediately and send an intact sample to the lab for metals, inorganics, chemical, or stratigraphic analysis.

Choose your system, length, and style below:

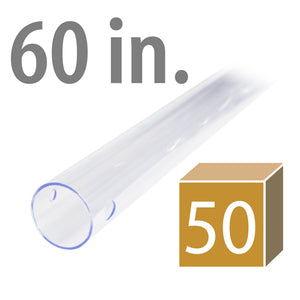

MacroCore (MC5) — 1.75" diameter, 3'/4'/5' lengths, Standard style. 66 liners/case.

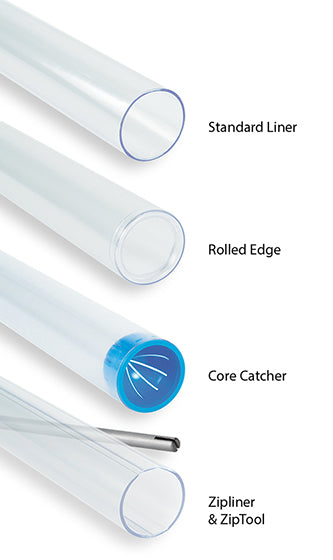

DT22 — 1.375" diameter, 3'/4'/5' lengths, Rolled Edge (open liner) or Core Catcher (retains loose/sandy samples) styles; the 4' Core Catcher is also offered Not Drilled. 50 liners/case.
DT325 — 2" diameter, 4'/5' lengths, Standard or Core Catcher styles; DT325 keeps a cased hole open below the water table. 42 liners/case.
DT45 — 3" diameter, 4'/5'/6' lengths (6' built to order); DT45 also provides a cased hole, sized for a 2" prepack or monitoring well afterward. 18 liners/case.

Application: Insert the liner into the matching Geoprobe sampler ahead of driving, advance to depth, then retrieve and cap the liner for transport or split it open on site to log soil conditions.

Looking for the tear-open, blade-free liner style for a MacroCore sampler? See our Geotech ZipLiner Direct Push Liners — a Geotech-made product sized to fit MacroCore and AMS samplers.

See the Direct Push Soil Liner spec sheet for full details.

$104.00

Quantity
