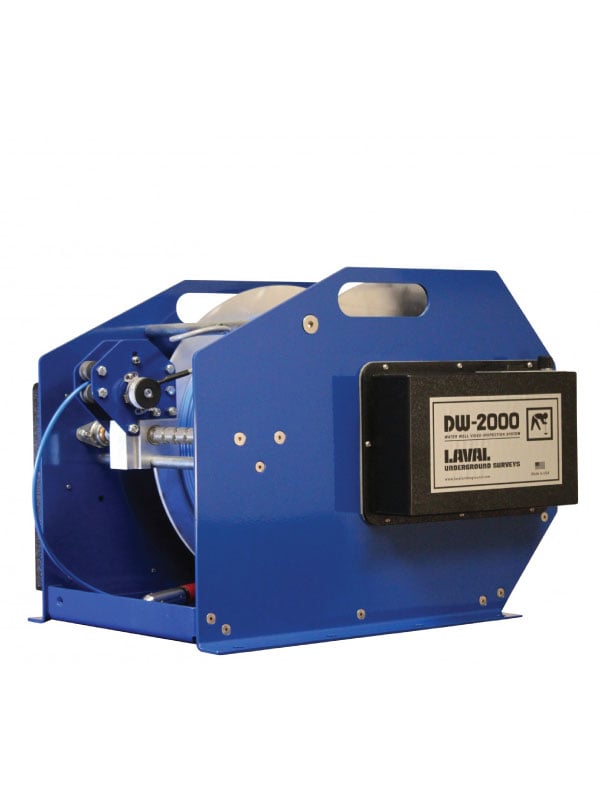

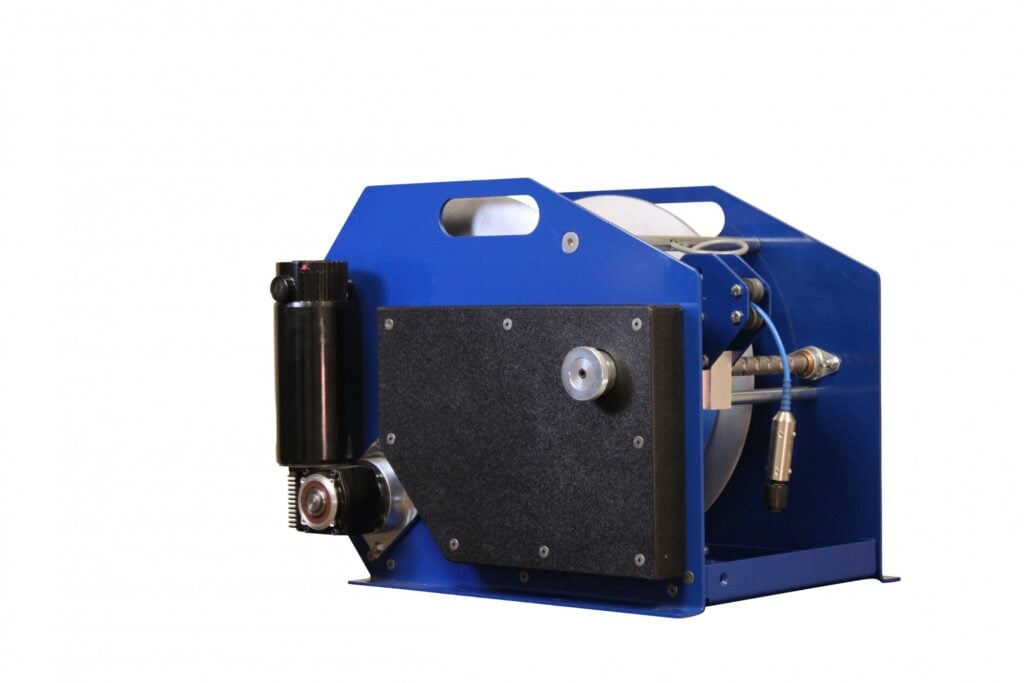

The deepest-reach winch in the DW line, spooled with 2,000 feet of Kevlar-reinforced cable with a cable head already attached. Level-wind mechanism, 90VDC 1/4 HP gear motor, and a detachable 5,000 psi quick-connect cable head make it suited to permanent or semi-permanent vehicle/skid mounting.

Application

Replacement or spare winch for DW-2000 deep well camera systems, used for deep borehole surveying and well rehabilitation.

Specifications

• Cable: 2,000 ft. Kevlar-reinforced
• Motor: 90 VDC, 1/4 HP, 360 in-lbs torque, 20 rpm
• Power: 115/230 VAC
• Weight: 172 lbs with cable, 120 lbs without
