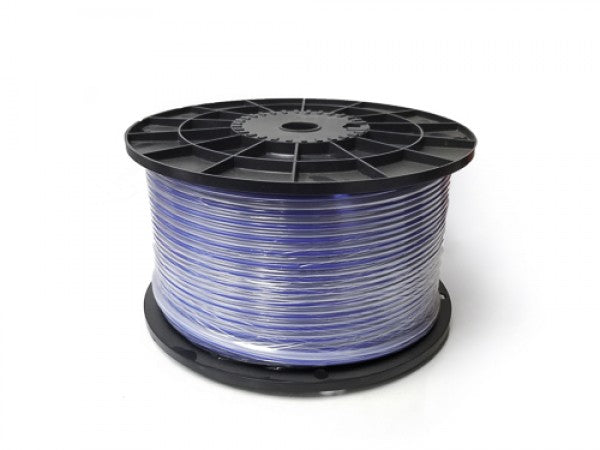

Bonded LDPE Tubing
Bonded Tubing for use with bladder pumps.
Low-Density Polyethylene Tubing is the industry standard for purge pumps. Strong and ridged to avoid kinking, yet pliable enough to deploy with ease.
Available in two sizes:
- .17 x .250 + .17 x .250
- .17 x .250 + .250 x .375
Specifications
ID x OD: in. (mm) |
Wall Thickness: in. (mm) |
Working Pressure 70°F: psi (bar) |
Max Pressure: psi (bar) |
*Maximum Depth: ft. (m) |
Precut Lengths: ft. (m) |
Minimum Bend Radius: in. (mm) |
Min. Operating Temp: °F (°C) |
Max. Operating Temp: °F (°C) |
.17 x ¼ (4 x 6) |
0.04 (1) |
200 (14) |
400 (28) |
400-800 (120-240) |
100, 500, 1000 (30, 150, 300) |
1 (25) |
-100 (-73) |
175 (79) |
1/4 x 3/8 (6 x 10) |
0.0625 (1.6) |
160 (11) |
350 (24) |
350-700 ( 106-212) |
100, 500, 1000 (30, 150, 300) |
1.25 (32) |
-100 (-73) |
175 (79) |
*Based on maximum pump depth deployment⁄precut lengths.
Regular price$1.40
/
