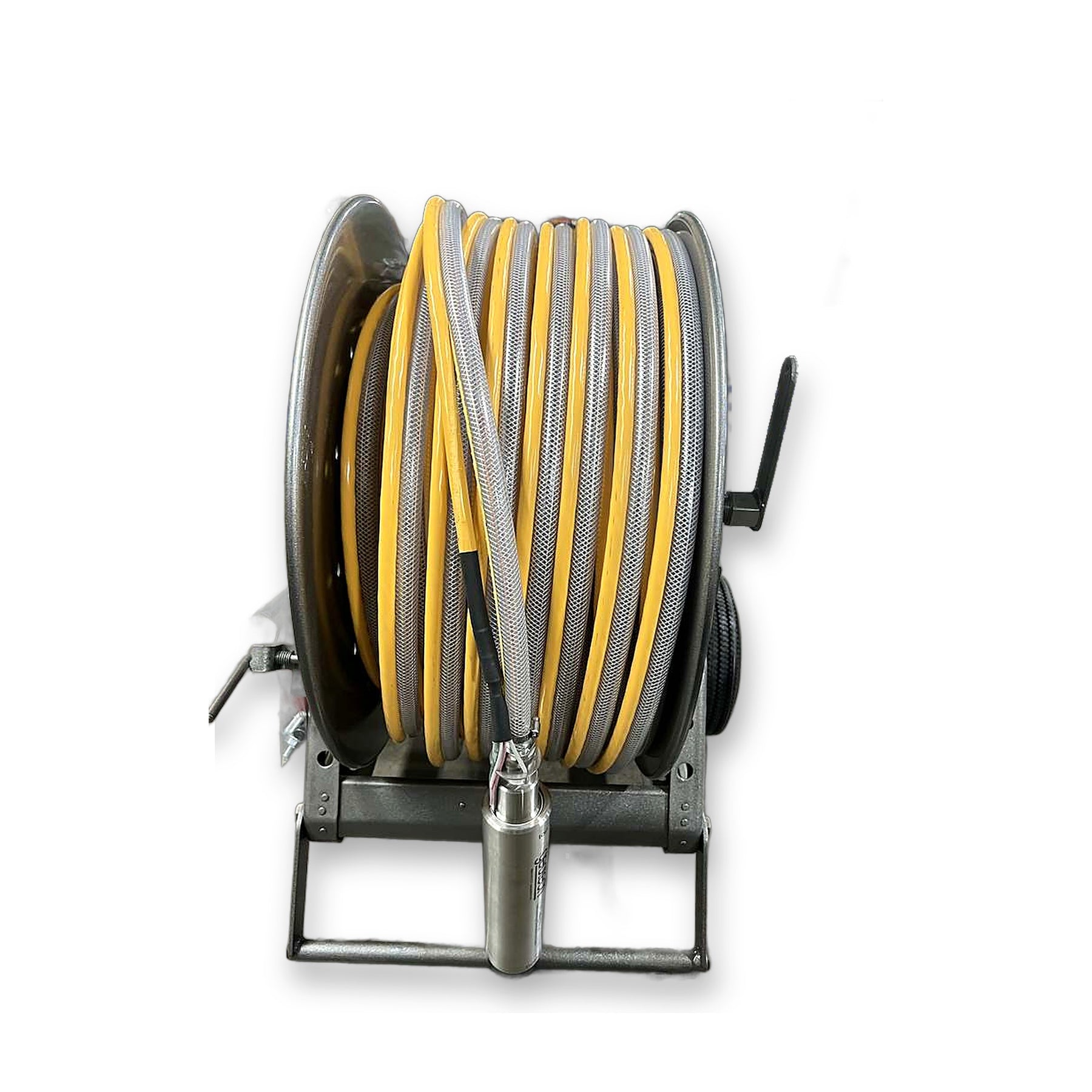

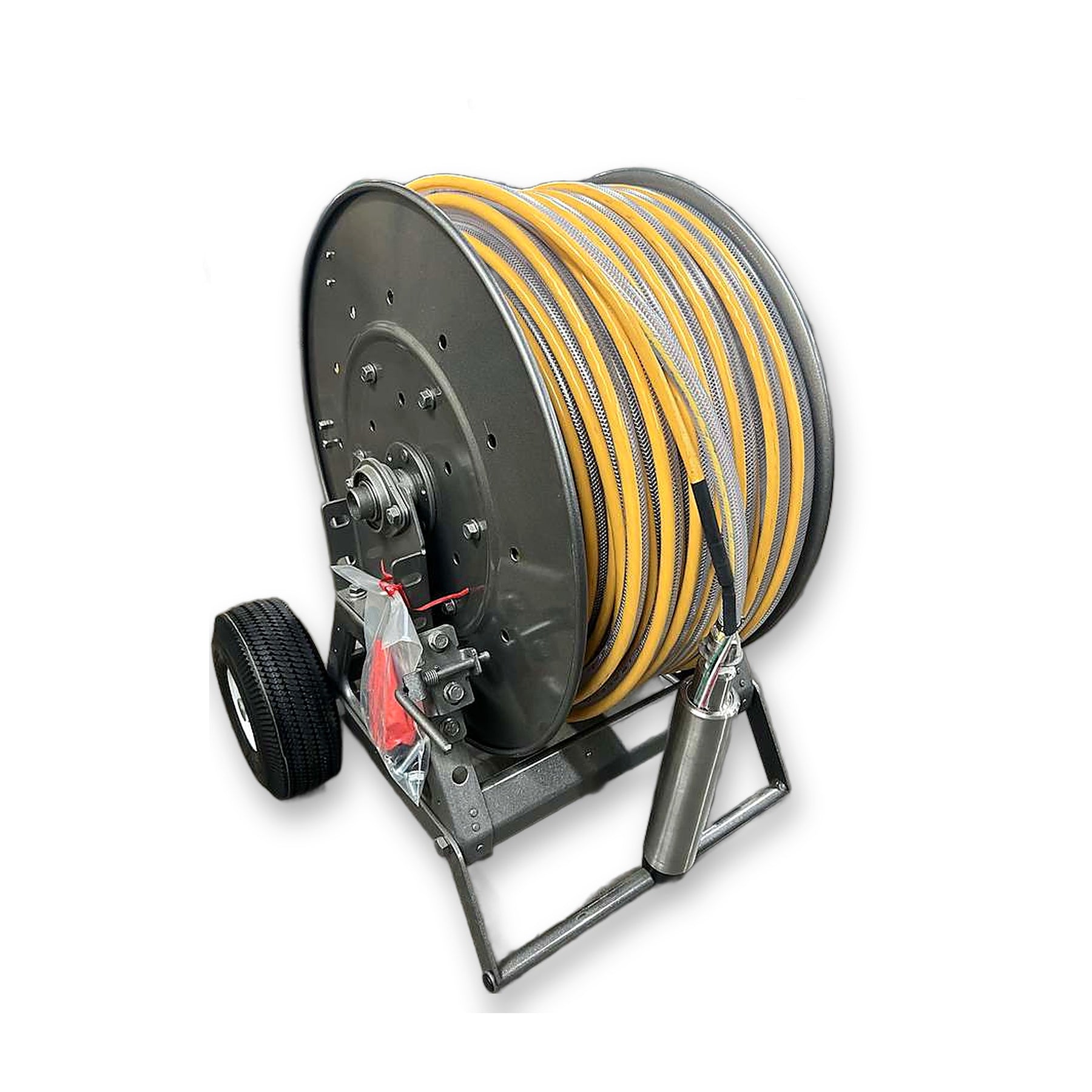

Complete portable sampling systems built around the RediFlo2 (MP1) pump. Every option on this page includes the pump, the motor lead with integrated stainless safety cable, and the Geotech portable reel — assembled, wound and ready to deploy. Roll it to the wellhead, connect the VFD, and sample.

Applications

• Multi-well sampling rounds — one operator moves the whole system between wells without stripping and re-rigging at each location.
• Low-flow / micro-purge programs — controlled deployment depth and a fixed, clean discharge line for stable drawdown sampling.
• VOC and low-level organics — choose an inert tubing material and the wetted path stays consistent from well to bottle.
• Deep monitoring wells — lead lengths to 300 ft, with the reel taking the weight during recovery.
• Purging and well development — high-rate discharge handled by a hose rated for the job.

Key features

• Supplied as a working system — pump, lead, safety cable, tubing and reel arrive matched and assembled.
• Discharge line stays off the ground — no dragging tubing through site soil between wells, which protects low-level results.
• Integrated stainless safety cable — the pump's weight is carried by cable, not by the motor lead or the tubing.
• Roll-formed steel drum with locking mechanism — holds position under load during deployment and recovery.
• Reel sized to the lead — 100 and 150 ft ship on the small reel, 200 ft and longer on the large reel.

Choosing a configuration

• Happy Hose — discharge tubing and motor lead bundled into a single jacketed run. Easiest to handle and to decontaminate. Includes tubing.
• All-in-One Lead — discharge tubing with the motor lead integrated into the same assembly. Widest material choice, including PTFE. Includes tubing.
• Collector Reel — hand reel with a centre collector and all-in-one lead, for setups where discharge is routed away at the wellhead. Supplied without discharge tubing.

Choosing a tubing material

• LDPE — the economical standard for routine purging and general groundwater work.
• FEP Lined PE — an inert fluoropolymer flow path with a polyethylene outer wall. Use where the analyte list rules out direct contact with polyethylene, at lower cost than full fluoropolymer.
• PTFE — fully inert fluoropolymer throughout. The reference material for VOCs, SVOCs and low-level organics.
• PVC Nylobraid — braided-reinforced PVC for higher pressure and rougher handling where chemical inertness is less critical.

Completing your system

Everything listed here is in Redi-Flo2 (MP1) Parts & Accessories.

Required

• Variable Frequency Drive — 115 V or 230 V; sets discharge rate from 8 GPM down to 100 mL/min
• 15 ft extension cord — connects the VFD to the reel
• Cooling shroud — required in any well 4" or larger. In 2" wells the passing water cools the pump automatically; in wider casings it can overheat and suffer permanent damage.
• Discharge tubing — only for the Collector Reel options, which ship without it

Also available — cable guard, stainless steel check valve, and the full range of replacement parts and service kits.

Need a length or material not listed? Custom lead lengths are available in 1 ft increments from 30 to 300 ft — contact us.
